Products ＞ Continuous High speed Granulating Machine (Wet Model) |
| |

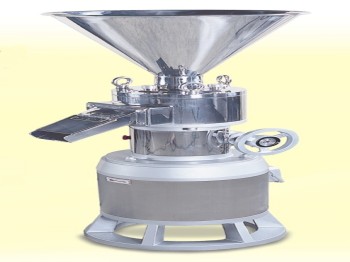

Continuous High speed Granulating Machine (Wet Model)
|
| |
|
| |
 General description： |
| |
|
This machine is capable of fracturing materials into very fine particles, it produces homogeneous mixing, agitating, dispersing and emulsifying actions simultaneously, functionally, it can replace machines such as: Bal Mill, Roll Mill and Homogenizer, but its production capability is above two times greater than the above machines. It has very high fracturing capability, and it not only deals with particles with dimension around 5 microns but also is capable of processing particles with fine particle with dimension below 1 micron. |
| |
|
| |
Features： |
| |
|
- The unique structure of this machine is that its upper part is fixed, and its lower part is a revolutionary type grinding stone.
- Continuous type operation makes this machine suitable for mass production.
- The gap between grinding stone can be adjusted, therefore, product quality can be freely controlled.
- Temperature can be adjusted, it is most suitable for volatile products and products which need to be controlled in temperature.
- Ease in operation, cleaning and adjustment.
- Liquid contact parts are made up of stainless steel or cast iron coated with chromium, it can effectively resist corrosion.
- Light weight and small size to save space.
|
| |
|
| |
Purposes： |
| |
|
Cosmetics：Lotion, hair lotion, face cream, lipstick, tec.
Foods：Peanut butter, sesame butter, etc.
Adhesives and general pharmaceutical products, ointment, stomach emulsion, etc. |
| |
|
| |
Model |
L.C. Part Material |
Driving Motor |
Grinding Stone Diameter |
Capacity |
S – 3 HP |
Stainless Steel
(SUS 304) |
220 V 3φ
2.2 KW (3HP)
3600 RPM |
95 mm 4in. |
30 – 100 L / hr. |
L – 20 HP |
Stainless Steel
(SUS 304) |
220 V 3φ
15 KW (20HP)
3600 RPM |
178 mm 7in. |
30 – 100 L / hr. |
|
| |
